  Marine & Industrial Applications



  APOLLOFLEX COMPOSITE HOSE for OILS and CHEMICALS
This page contains the following information:
General Hose Specifications
APOLLOFLEX Hose Listings (all products)
  WARNING:
 Apollo recommends a hose for its normal service
as outlined in this catalog.
Other  applications should be referred to
your Apollo representative.




   HOSE CONSTRUCTION
APOLLOFLEX composite hose is composed of multiple layers of polypropylene films and
fabrics, reinforced with inner and outer spiral wire helixes. A polar fluid resilient barrier
layer is an integral part of the hose construction.
The inner and wire helix is either galvanized steel, polypropylene-covered steel, or stainless steel, depending on application. The outer wire is usually high tensile galvanized carbon steel.
Stainless steel outer wire is also available. The outer cover is weather
and abrasion-resistant PVC-impregnated polyester fabric.
This construction results in a light and flexible hose capable of a wide range of services.


  GENERAL HOSE SPECIFICATION

Type Approvals Test Certificates Electrical Continuity
United States Coast Guard
IMO
LLOYD'S Register of Shipping
DET Norske Veritas
Netherlands Shipping Inspection
Nippon Kaiji Kyokai
All APOLLOFLEX heavy duty marine hoses are hydrostatically tested at one and a half times working pressure before shipment. Each hose is individually serialized and delivered with its own test certificate. Both inner and outer wires are connected to each end and tested for electrical continuity before shipping.
End Fittings Chemical Resistance Temperature Range
APOLLO uses the superior external swage method to attach end fittings. See FITTINGS below for details. APOLLO employs only US Coast Guard-certified welders and factory-trained technicians Chemical Resistance Chart Click Here Depending on conveyant, APOLLOFLEX hose is suitable for use between -22F
(-30 C) and 212F (100C)

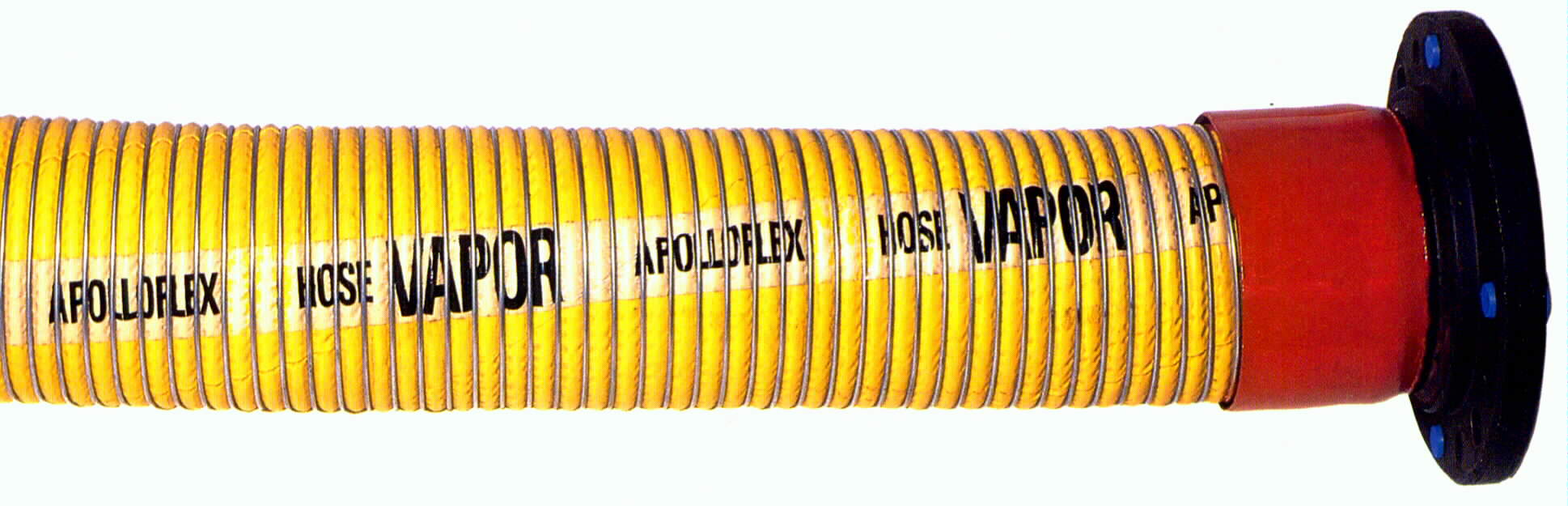

  VAPOR RECOVERY HOSE


Vapor Recover Hose - ApolloFlex Series


APOLLOFLEX HOSE Listing

Style Usage Service
Category
Cover Color Suitable for:
1052G Heavy Duty General Petroleum   the transfer of fuel oil, gasoline, diesel fuel, jet fuel, 100% aromatics and other petroleum products. 1052G is a specially designed marine hose for ship, barge and terminal services.
957G Standard Duty General Petroleum   the transfer of fuel oil, gasoline, diesel fuel, jet fuel, 100% aromatics, and other petroleum products. 957G is for use in tank truck, railcar, in-plant, chemical refinery and other industrial applications.
1052P Heavy Duty General Chemical   the transfer of many acids and alkalies, cloronated hydrocarbons, aromatic fuels, alcohols, and petroleum products. Style 1052P is a heavy duty marine hose designed for ship, barge, and terminal service.
957P Standard Duty General Chemical   the transfer of many acids and alkalies, cloronated hydrocarbons, aromatic fuels, alcohols, and petroleum products. Style 957P is for use in tank truck, railcar, in-plant, chemical refinery and other industrial applications.
1052S Heavy Duty General Chemical   the transfer of many acids and alkalies, cloronated hydrocarbons, aromatic fuels, alcohols, and petroleum products. Style 1052S is a heavy duty marine hose designed for ship, barge, and terminal service.
957S Standard Duty General Chemical   the transfer of many acids and alkalies, cloronated hydrocarbons, aromatic fuels, alcohols, and petroleum products. Style 957S is for use in tank truck, railcar, in-plant, chemical refinery and other industrial applications.
1052T Heavy Duty Aggressive Chemical   the transfer of many aggressive acids and alkalies, MTBE, clorinated hdrocarbons, aromatic fuels, alcohols, and petroleum products. Use wherever a fluoropolymer tube is desirable. Style 1052T is a heavy duty marine hose designed for ship, barge, and terminal service.
957T Standard Duty Aggressive Chemical   the transfer of many aggressive acids and alkalies, MTBE, clorinated hdrocarbons, aromatic fuels, alcohols, and petroleum products. Use wherever a fluoropolymer tube is desirable. Style 957T is for use in tank truck, railcar, in-plant, chemical refinery and other industrial applications.
100P   Vapor Recovery   the capture and recovery of chemical and hydrocarbon vapors. This flexible, economical and lightweight hose complies with U.S. Coast Guard regulation 33CFR 154.810 Final Rule of June 21, 1990. Service applications for 100P recovery hose include ships, barges, and marine terminals and also it can be used for vapor recovery in tank truck and railcar applications. Marine & Industrial.  For safety reasons, special female flanges are attached to this hose. Mating male shoreside flanges are also available in New York & Houston.






1052G - Heavy Duty Oil Service
1052P - Heavy Duty Chemical Service
1052S - Heavy Duty Chemical Service
1052T - Heavy Duty Chemical Service

INSIDE DIAMETER WORKING PRESSURE BURST PRESSURE SAFETY
FACTOR
MINIMUM BEND RADIUS WEIGHT PER FOOT MAXIMUM LENGTH
4" 200 PSI 1000 PSI 5:1 16" 4.4 lbs. 65 feet
6" 200 PSI 1000 PSI 5:1

20"

7.0 lbs. 65 feet
8" 200 PSI 1000 PSI 5:1 29" 12.0 lbs. 65 feet
10" 150 PSI 800 PSI 5:1 36" 15.0 lbs. 40 feet






957G  - Standard Duty Oil Service
957P  - Standard Duty Chemical Service
957S  - Standard Duty Chemical Service
957T  - Standard Duty Chemical Service

INSIDE DIAMETER WORKING PRESSURE BURST PRESSURE SAFETY
FACTOR
MINIMUM BEND RADIUS WEIGHT PER FOOT MAXIMUM LENGTH
1" 200 PSI 800 PSI 4:1 4.0" .65 lbs. 65 feet
1-1/2" 200 PSI 800 PSI 4:1 5.3" .85 lbs. 65 feet
2" 200 PSI 800 PSI 4:1 6.5" 1.35 lbs. 65 feet
2-1/2" 200 PSI 800 PSI 4:1 7.5" 1.75 lbs. 65 feet
3" 200 PSI 800 PSI 4:1 9.5" 2.20 lbs. 65 feet
4" 200 PSI 800 PSI 4:1 14.5" 3.40 lbs. 65 feet




100P - Vapor Recovery

INSIDE DIAMETER WORKING PRESSURE BURST PRESSURE SAFETY
FACTOR
MINIMUM BEND RADIUS WEIGHT PER FOOT MAXIMUM LENGTH
3" 100 PSI 400 PSI 4:1 7" 1.8 lbs. 65 feet
4" 100 PSI 400 PSI 4:1 11" 2.5 lbs. 65 feet
6" 100 PSI 400 PSI 4:1 16" 3.5 lbs. 65 feet
8" 100 PSI 400 PSI 4:1 22" 8.0 lbs. 65 feet
10" 100 PSI 400 PSI 4:1 30" 10.5 lbs. 40 feet

Construction
Inner wire   Polypropylene-coated
Outer Wire   Stainless Steel
Maximum Temperature   212?F (100?C)



  End Fittings Click Here
