Marine  Applications

Tank Cleaning Hose

Apollo Style 250
Product Information Page

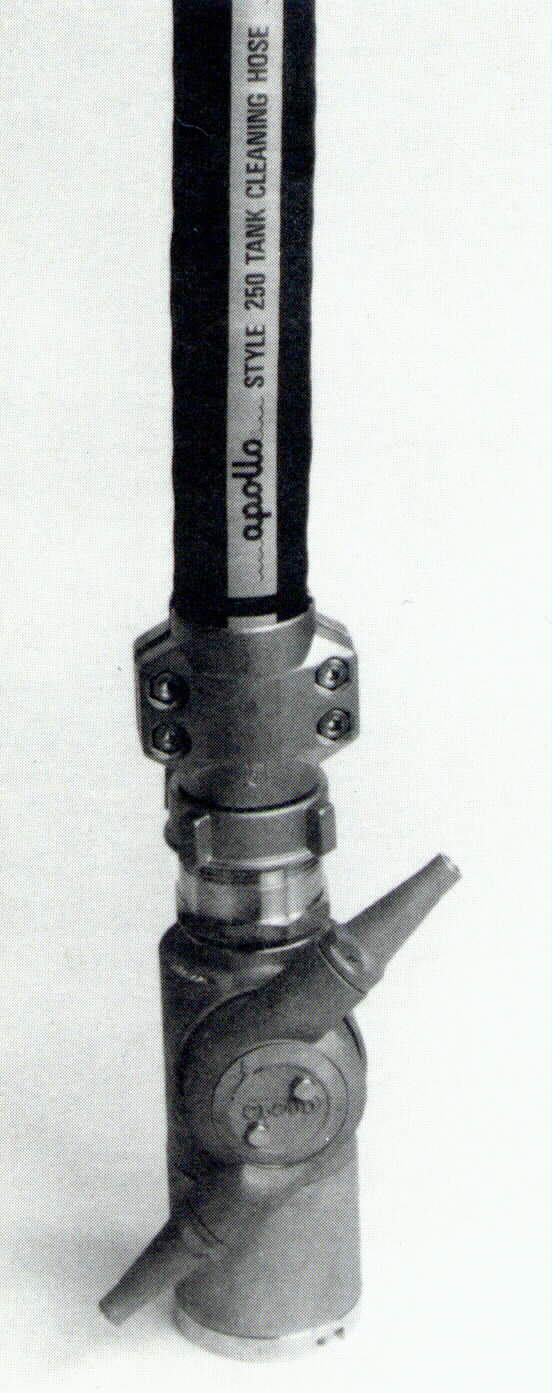

High pressure, special purpose hose for cleaning bulk storage tanks


APOLLO Style 250



Sizes 1 1/2"x 50',75',100'
2" x 50', 75', 100'
Working Pressure 250 psi
Burst Pressure 1000 psi
Temperature 95 C (230 F.)
Weight 1 1/2" = 1.14 lbs/ft
2" = 1.47 lbs/ft
OHM Readings: 50' lengths = 19 ohms or less
75', 100' lengths = 28 ohms or less
Static Wires: Two separate 19 strand, 1mm diameter stainless steel wires spiralled 180 apart. Wire extends 4 " beyond end hose.
Cover: 1 /8 " thick, resilient to abrasion, heat and salt water.
Markings: 2 1/2" wide, distinctive yellow rings with clearly indicated footage markings vulcanized into hose in 5' increments. Branded "APOLLO 250" in bright yellow stripe.
Reinforcement: Multiple plies of strong, flexible reinforcement to handle working pressure and minimum burst pressure. Resilient to mildew and rot.
TUBE: 1/8" thick compounded to handle:

Hot salt water at 70-80 C
Caustics 15-20 %
Phosphoric Acid 10-15 %
Aromatics 1-2 %
(Toluene, Xylene, Benzene)
