Marine
& Industrial Applications |
 JOINTINGS
|
|
|
Apollo Jointings
Product Information Page.
Feet
per pound guide - click here
|
|
|
NON-Fiber JOINTINGS |
|
|
|
NON-Fiber
|
Apollo 533
| Description |
Style 533 is
a non-Fiber compressed fiber sheet which can be used in place of
Style 511 or Style 570 in many services where Fiber is not
desirable. Composed of synthetic fibers with a nitrile binder, Style
533 can be used in steam, water, petroleum and mild chemical
services. A clear anti-stick coating is added for ease of gasket
removal. Stocked in standard 60" x 60" sheets; also
available in 60" x 120". |
| USE |
General
Service where a Non-Fiber Compressed Sheet is Desired. |
Temperature
Limit |
750?F (
400°C) |
| Pressure
Limit |
1400 PSI
(100 bar) |
| SPECS |
ASTM
D1170-P1141A, ASTM F104 F002120M6 |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo SEALON
| Description |
Sealon is an
expanded PTFE gasket material that combines the chemical resistance of
PTFE with recovery from compression of an elastomeric material. Unlike
normal PTFE, Sealon will not "cold flow" or "take a
set". Available in sheet or cut gasket form. |
| USE |
Flange
Gaskets under the Severest Chemical and Flange Load Conditions. |
Temperature
Limit |
500?F (
260?C) |
| pH RANGE |
0 - 14 |
| Pressure
Limit |
500 PSI (33
bar) |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo 2400
| Description |

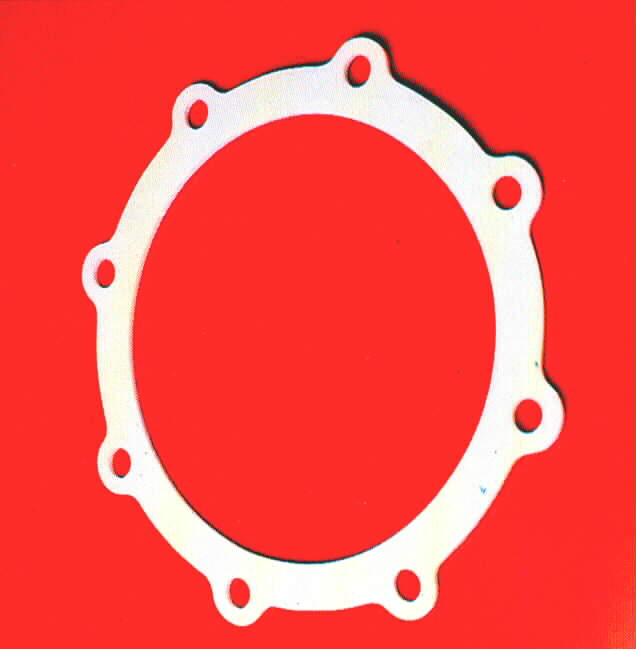

Style 2400
is a pure virgin PTFE electrical grade sheet. Uses include gaskets,
washers, bushings, and other USERal parts. Resistant to almost all
industrial chemicals, with an extremely low coefficient of friction.
Also offers superb electrical properties. Standard sheet size is
36" x 36"; available in other sheet sizes as well. |
| USE |
Sealing or
USERal Parts where Maximum Chemical Resistance and/or Low
Coefficient are Required. |
Temperature
Limit |
500?F
(260?C) |
| pH RANGE |
0 - 14 |
| Pressure
Limit |
500 PSI (33
bar) |
|
|
|
RUBBER JOINTINGS |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo 612
| Description |
Style 612 is
a premium quality diaphragm sheet composed of nitrile rubber with a
high-strength flexible nylon fabric insertion. Suitable for diaphragm
and flange gasket service for air, water, low pressure steam, and
petroleum service including unleaded gasoline. Available in 48"
wide rolls and sheets. |
| USE |
Diaphragm
and Flange Gasket Service |
Temperature
Limit |
250 °F
(120?C) |
| pH RANGE |
400 PSI (26
bar) |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo 615
| Description |
Style 615 is
an SBR rubber sheet reinforced with a polyester fabric insertion. This
construction gives greater strength than the traditional cotton
insertion. Suitable for flange gasket service for air, water and low
pressure steam. Available in 36" wide sheets and rolls. |
| USE |
Non-petroleum
Flange Gasket Service. |
Temperature
Limit |
250?F
(120?C) |
| pH RANGE |
300 PSI (20
bar) |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo 620
| Description |
Style 620 is
a high quality neoprene sheet resistant to fats, oils, and
non-aromatic petroleum products. Available in 36" wide rolls and
sheets. |
| USE |
Non-aromatic
Flange Gasket Service |
Temperature
Limit |
300°F
(150?C) |
| Pressure
Limit |
200 PSI (13
bar) |
|
|
|
FIBER, CORK, AND WATER JOINTINGS |
|
|
|
NON-Fiber
|
Apollo 641
| Description |
Style 641 is
a vegetable fiber sheet that is impregnated with glycerine compounds.
This treatment allows Style 641 to be used as a gasket material on
gasoline, oils and other petroleum products. |
| USE |
Flange
Gaskets for Petroleum Service at Moderate Temperatures and Pressures. |
Temperature
Limit |
250?F
(120?C) |
| Pressure
Limit |
200 PSI (13
bar) |
| SPECS |
HH-P-96F,
type 1; MIL-G-12803 A&B; SAE J90 |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo 645
| Description |
Style 645 is
a cork/neoprene composition sheet. This material offers exceptional
resiliency, conformability, and resistance to oil-based products. |
| USE |
Flange
Gaskets for Petroleum Service where a Material with Exceptionally High
Compressibility and Recovery is Required |
Temperature
Limit |
300?F
(150°C) |
| Pressure
Limit |
300 PSI (20
bar) |
| SPECS |
MIL-C-6183A,
ASTM F104 F227000M1 |
|
| |
|
|
|
|
|
NON-Fiber
|
Apollo 602
| Description |
Style 602 is
an SBR cloth finish red rubber sheet packing. Economical in cost,
Style 602 is suitable for hot and cold water service. Available in
36" wide rolls. |
| USE |
Flange
Gaskets for Hot and Cold Water. |
Temperature
Limit |
250?F (120
°C) |
| Pressure
Limit |
200 PSI (13
bar) |
|
|
|
|
|
|
|
|
|
